Print layout syntax
Print layout example
<?xml
version="1.0"
encoding="utf-8"?>
Minimal print layout
<PrintLayout Name="Empty" Remark="NoPrint">
<PrinterResolution hDPI="300" vDPI="300">
<Canvas Height="0" Width="0"/>
</PrinterResolution>
</PrintLayout>
Tags
The XML configuration file is structured as follows:
| Element | Attribute | Cardinality Optional / mandatory | Description Valid values |
|---|---|---|---|
| <PrintLayout> | 1 | Root container element |
| Name | Mandatory, not empty | Name of the print layout |
| Remark | Optional | Comment on the print layout |
| <PrinterResolution> | 1 ... | |
| N | ||
| for defining the printer resolution |
| hDPI | Mand|
| , fixed value "300" | Horizontal resolution in DPI [dots per inch] Only the resolution 300 DPI is supported! |
| vDPI | Mandatory, fixed value "300" | Vertical resolution in DPI [dots per inch] Only the resolution 300 DPI is supported! | |
| <PrinterParameter> | Optional, 0..1 | Container Element for printer-specific parameters | |
| <Parameter> | Optional, 0..N | Element for printer-specific parameters |
| Name | Mandatory, name of the printer-specific parameter. |
| Value | Mandatory | Depending on the parameter name | |
| <Canvas> | 1 | Element for virtual drawing area. |
| All position specifications of the <Image> and <Text> elements refer to the top left corner of this canvas. | ||||
| hPrintOffset | Mandatory | Horizontal print offset in [mm] from the right letter edge, see dimensioning. If no automatic print offset is switched on or the automatic print offset does not find a free area, it is printed at the position defined here | ||
| Height | Mandatory | Height of the drawing area in [mm], see | ||
| dimensioning | ||||
| Width | Mandatory | Width of the drawing area in [mm], see dimensioning. | ||
| <LoadFont> | 0 ... | N | Element for font. | |
| All fonts used by the <Text> elements must be loaded beforehand with <LoadFont>! | ||||
| FontNr | Mandatory | |||
| Internal number of the font, this is referenced by the <Text> elements | ||||
| File | Mandatory | File name of the font. | ||
| Font files must be in the internal XiJet format (XFT). | ||||
| Rotation | ||||
| Mandatory | ||||
| Alignment/rotation of the font in degrees [ยบ]. | ||||
| Permitted values: "0", "90", "180", "270" | ||||
| <Image> | 0..N | Element for images, images must be saved in Windows BMP format! | ||
| File | Mandatory | File name of the image | ||
| hPos | Mandatory | Horizontal position in [mm] of the image in the drawing area relative to the top left corner of the canvas | ||
| vPos | Mandatory | Vertical position in [mm] of the image in the drawing area relative to the top left corner of the canvas. | ||
| Height | Optional | Height of the image in [mm]. If defined, the image is printed up to a maximum of this height, the rest is cut off | ||
| If not defined, the entire image is printed | ||||
| Width | Optional | Width of the image in [mm]. If defined, thed image is printed up to a maximum of this width, the rest is cut off. | ||
| not defined, the entire image | ||||
| <Text> | 0 ... | |||
| N | Element for static or dynamic text | The fonts used must |
| FontNr | Mandatory | Reference to font loaded via <LoadFont>. |
| String | Optional | Static text to be printed |
| Variable | Optional | Dynamic text to be printed. |
| The attribute defines the shipment attribute that is printed. See print variables for permitted values. Example: - "UPOC": UPOC of the shipment - "SIx": Sort info SIx of the shipment | |||
| Top | Mandatory | positioning/bounding box: Vertical position of the top left corner of the text field relative to the canvas [mm], see dimensioning. |
| Left | Mandatory | positioning/bounding box: |
| Horizontal position of the upper left corner of the text field relative to the canvas [mm], see | ||
| . |
| Bottom | Mandatory |
| : Vertical position of the lower right corner of the text field relative to the canvas [mm]. |
| Right | Mandatory | positioning/BoundingBox: |
| Horizontal position of the bottom right corner of the text field relative to the canvas [mm]. |
| Align | Optional | Optional attribute, if not defined, "Left" is used as the default |
| Permitted values: "Left", "Center", "Right" |
| Reverse | Optional | 0= normal, 1= reverse colors |
| Wrap | Optional | Optional attrib
| , if not defined is used as default "0" (No Warp). Permitted values: "0", "1" 0 = No wrapping, , when text reaches the edge of the bounding box the text is cplipped 1 = Wrap text. | |
| When text reaches the edge of the bounding box that word is automatically moved to the next line. |
| Mirror | Optional | Optional attrib |
| defined is used as default | ||
| "0" (Not mirror | ||
| ) | ||
| . Allowed values: "0", "1" 0 = Not mirror 1 = Mirror the resulting image about the center of the horizontal bounds. |
| BottomJustify |
| Optional |
| Optional attribute, if not defined is used as default "0" (No BottomJustify) |
| values: "0", "1" 0 = No BottomJustify 1 = Lines of text will be bottom justified ('Bottom' is a relative term, as it relates to rotation of 0). | ||
| BarcodeType | Optional | Defines whether the text is interpreted as a barcode. Permitted values: "", "Interleaved2of5" |

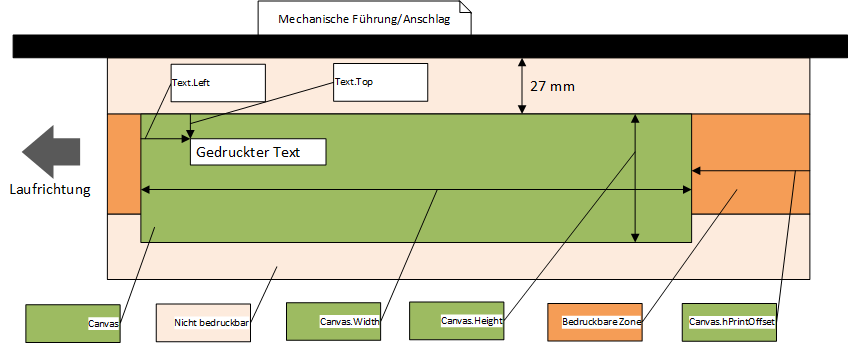

The height of the printable area is fixed at 1.5 inches = 38 mm
.To make full use of the print area, 38 is therefore a sensible value for <Canvas>.Height.
180 degree rotated text
Thefollowing XML tags/attributes must be adapted for printing 180 degree rotated text:
<LoadFont>.Rotation
The attribute <LoadFont>.Rotation must be set to 180!
<Text>.Bottom
The attribute Text.Bottom attribute instead of Text.Top
!
The height of the font used is taken into account internally by the printer.
This results in sensiblevalues for Text.Bottom in the range from approx. 6 to 40, Text.Top can be set to 0.
<Text>.Right
Use the Text.Right attribute instead of Text.Left!
The length of the text used is taken into account internally by the printer .
This results in sensible values for Text. Right in the range from approx. 100 to 200, Text.Left can be set to 0.
Example:
<?xml version="1.0" encoding="utf-8"?>
<PrinterResolution hDPI="300" vDPI="300">
<Canvas Height="38.1" Width="210">
<!-- 180 Grad Fonts -->
</Canvas>
</PrinterResolution>
See also:
 |
